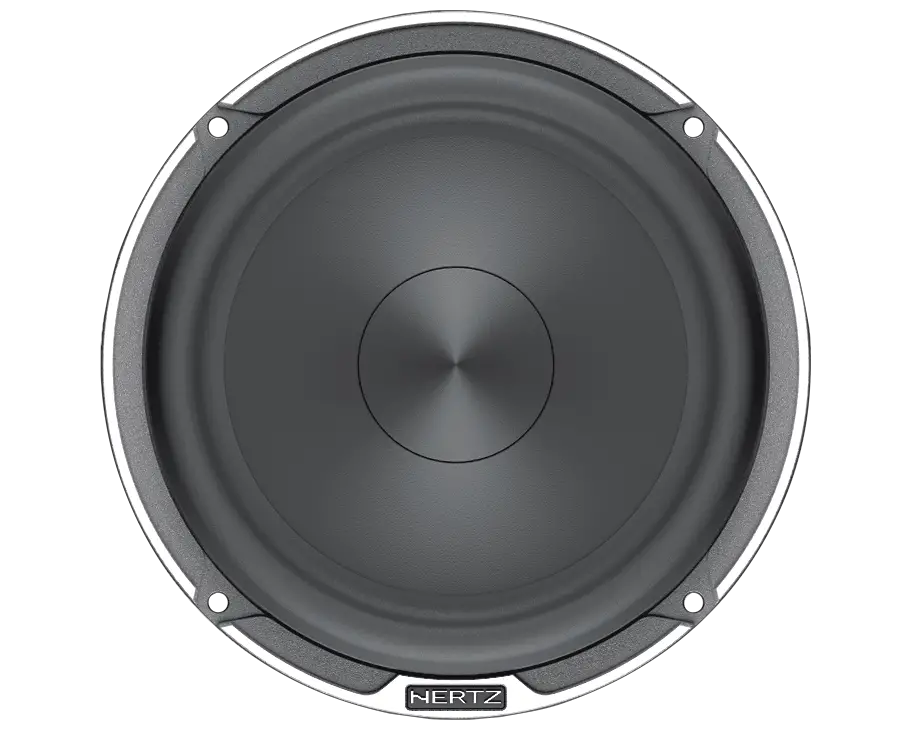

| Component | Woofer |
| Size mm (in.) | 165 (6.5) |
| Power Handling – Continuous W | 90 |
| Power Handling – Peak W | 180 |
| Impedance Ohm | 4 |
| Voice Coil Ø | 25 (1) |
| Frequency Response Hz | 40 ÷ 5k |
| Magnet size D x d x h mm (in.) | 85 x 32 x 17 (3.35 x 1.26 x 0.67) |
| Weight of one speaker kg (lb.) | 1.07 (2.36) |
| Magnet | High density flux ferrite |
| Cone | Pressed-pulp cone with cotton fibers |
| Xmech mm (in.) | ±7 (0.28) |
| D mm | 132 |
| Re Ohm | 3,1 |
| Fs Hz | 70 |
| Le mH | 0,3 |
| Vas I | 9,5 |
| Mms g | 14,9 |
| Cms mm/N | 0,36 |
| BL T*m | 5,5 |
| Qts | 0,58 |
| Qes | 0,67 |
| Qms | 4,6 |
| Spl dB | 93 |
Specifiche fisiche
| A | 165 mm | 6.5 in. |
| B | 141 mm | 5.55 in. |
| C | 74 mm | 2.91 in. |
| D | 63 mm | 2.48 in. |
| E | 183,5 mm | 7.22 in. |
| F | 29 mm | 1.14 in. |
Risposta in frequenza
