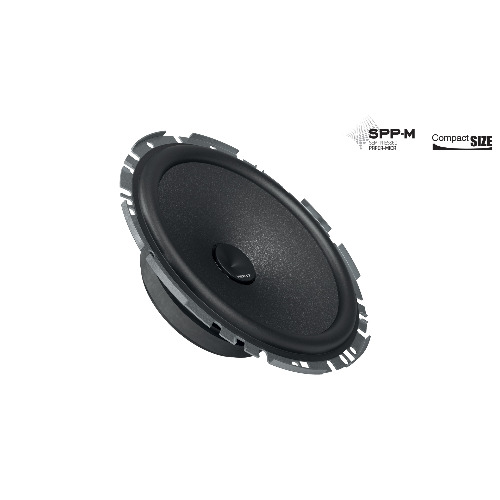

| Component | Woofer |
| Size mm (in.) | 165 (6.5) |
| Power Handling – Continuous W | 70 |
| Power Handling – Peak W | 210 |
| Impedance Ohm | 4 |
| Voice Coil Ø | 25 (1) |
| Frequency Response Hz | 55 ÷ 7k |
| Magnet size D x d x h mm (in.) | 85 x 32 x 15 (3.35 x 1.26 x 0.59) |
| Weight of one speaker kg (lb.) | 0,96 (2.12) |
| Magnet | High density flux ferrite |
| Cone | Semi-pressed paper+ Mica |
| Xmech mm (in.) | 4,9 (0.19) |
| D mm | 131,5 |
| Re Ohm | 3,2 |
| Fs Hz | 60 |
| Le mH | 0,2 |
| Vas I | 13,24 |
| Mms g | 13,9 |
| Cms mm/N | 0,51 |
| BL T*m | 4,9 |
| Qts | 0,59 |
| Qes | 0,69 |
| Qms | 3,9 |
| Spl dB | 93 |
Specifiche fisiche
| A | 165 mm | 6.5 in. |
| B | 142 mm | 5.59 in. |
| C | 71 mm | 2.8 in. |
| D | 62,5 mm | 2.46 in. |
| E | 171 mm | 6.73 in. |
| F | 24 mm | 0.94 in. |
Risposta in frequenza
